JCB 535-95 Loadall Telescopic Handlers

JCB 535-95 Loadall Telescopic Handlers

Max. lifting height

9.5 m

Maximum rated load capacity

3,500 kg

Maximum engine power

55 kW

Maximum range

6.52 m

Driving speed

33 kph

Operating weight

8,215 kg

Description

535-95

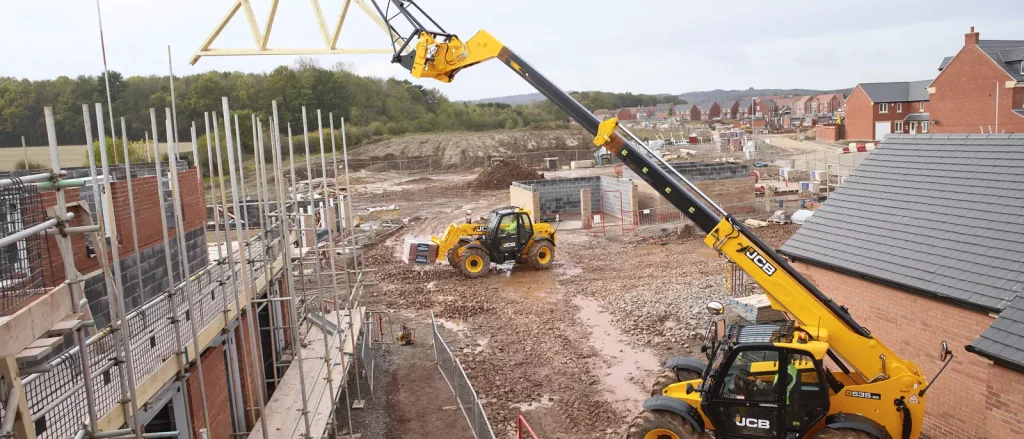

The latest JCB 535-95 Construction LKoadall is a telehandler that tackles the challenges of any construction site head-on.

The latest and cleanest JCB 535-95 Loadall is equipped with an extremely clean and efficient JCB Dieselmax Stage V engine. JCB LiveLink allows remote monitoring of the machine's diesel particulate filter, eliminating the need for manual regeneration or maintenance to protect the machine and ensure optimal performance.

Unrivaled productivity

The class-leading JCB hydraulics ensure fast cycle times and guarantee efficient lifting, extending and pushing.

A JCB Construction Loadall is extremely maneuverable; the compact wheelbase, large steering angles and 3 steering modes save valuable time on the construction site.
The new Stage V DieselMAX engine generates its power and torque at low engine speeds, making it very responsive to operate.
JCB's latest Stage V compliant 55 kW (75 hp) engine offers a combined DPF/DOC aftertreatment package that meets Stage V emissions standards without a DEF.
Injection is achieved, thus minimizing the impact on the maintenance and operation of the machine.

Unbeatably low operating costs

The 535-95 is not only efficient in operation, but also in purchase and operation. We have designed these machines to ensure you get the greatest possible return on your investment.

JCB's proprietary telematics and fleet management system, LiveLink, maximizes the uptime of your machinery fleet. In addition to tracking machine hours, LiveLink allows you to monitor fuel consumption and provide service and maintenance alerts. LiveLink also lets you monitor your DPF regeneration.
LiveLink also provides performance reports on idle time, location, machine condition, diagnostic error codes, engine utilization by power range, safety warnings, and fuel consumption.

Unrivaled service and support

To get the most out of your investment, your machines need to be working, not being serviced. JCB loaders have long maintenance intervals, and when maintenance is required, it's quick and easy to perform.

All daily checks, lubrications and components requiring maintenance are accessible from the ground, allowing for a quick and safe inspection before the start of the workday.
The filters on a Loadall (engine oil, hydraulic oil and fuel) are centrally located and can therefore be serviced quickly and easily.
Both the diesel and AdBlue tanks can be easily filled from the ground.
Both tanks also have built-in pre-filters in the filler necks to protect against dirt and impurities.

Unrivaled strength and durability

The 535-95 HI VIZ is designed to offer you maximum uptime. Our machines are as robust as possible and use high-quality components and innovative manufacturing processes.

The rigorous testing program for the new Construction Loadall series included prolonged, high stress on the chassis, boom and other key components.
We installed a robust, inverted U-shaped cantilever press with fully welded end plates. For added strength, we increased the number of
Connections and stress points on the integrated cantilever nose and the one-piece end plate have been reduced.
The boom of a Construction Loadall is mounted deep within the one-piece, fully welded chassis, resulting in a very rigid structure and maximum over-the-shoulder visibility.
