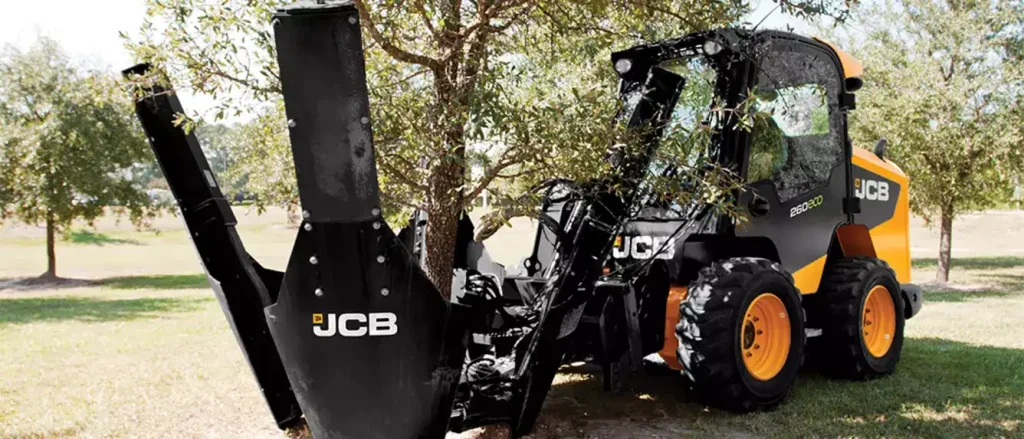

JCB Tree spade Forestry Attachments

Dig depth

560-790 mm

Tree ball diameter

460-660 to 810-1,120 mm

Tree ball weight

70-225 to 545-635 mm

Tree diameter

38-63 to 76-114 mm

Cutting angle

25 °

Description

  • Inside frame design and low profile towers allows operation in confined areas.
  • Pointed, high tensile, abrasion resistant blades for easy soil penetration.
  • Blade towers incorporate high density synthetic slides that are self-lubricating for long life.
  • Overlapping blades ensure clean root cutting and support of the root ball.
  • The wide gate opening allows operator to easily clear trees when engaging - maximum tree diameter is 114 mm!
