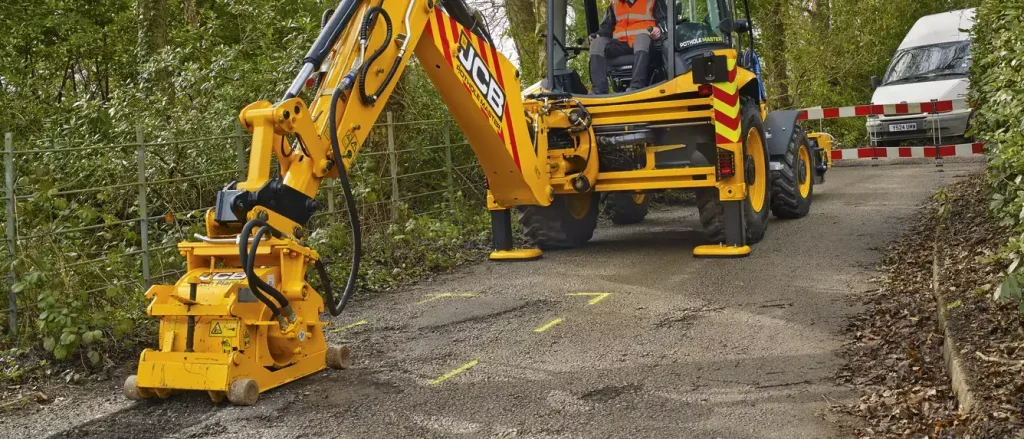

JCB Patch planer Specialist Attachments

Working width

300-350 mm

Min distance from curb

50 mm

Swinging support rotation angle

118-127 º

Required oil pressure

300-180 bar

Required oil flow

45-90 lpm

Weight

390-530 kg

Description

Planning precision is guaranteed thanks to a maximum drum depth of 120 mm.

  • Supplied ready to use fitted with a set of asphalt picks, hanger bracket, hoses and couplings.
  • Up to 350 mm drum width.
  • 2 models offered with 36 and 42 replaceable picks.
  • Visual aids on the attachments indicate drum width and centre to the operator.
  • Reuse milled material for backfilling trenches.
  • Stone guard fitted for safety to help prevent material being ejected out of the side of the planer.
  • Hydraulic protection to prevent accidental reverse operation.
